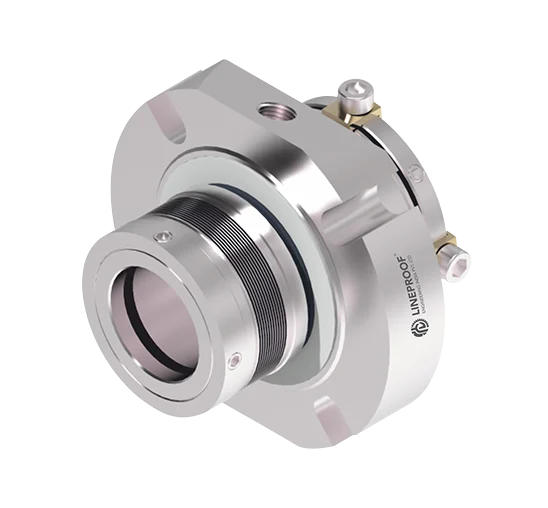

Metal Bellows Dual Cartridge Seal
LPM322
The Metal Bellows Dual Cartridge Seal is designed for high-temperature and demanding process applications where reliable sealing is critical. Its welded metal bellows construction eliminates dynamic O-rings while the dual cartridge configuration provides enhanced sealing safety, improved heat resistance, and stable face loading for continuous operation. Since 2002, Lineproof Engineering, based in Mumbai, has been designing and supplying precision mechanical shaft seals and specialized cartridge sealing technologies developed to support safe and efficient performance in modern process industries.
Face Material
Carbon Graphite, Silicon Carbide, Tungsten Carbide.Metal Parts
SS 316, SS 304, Duplex. Bellows: Inconel 718.Secondary Seal
FPM, EPDM, FFKM.Operating Limits
- Shaft Diameter 25 mm to 80 mm
- Pressure 25 bar
- Temperature −40 °C to 220 °C
- Velocity 20 m/s
Characteristics
- Double seal
- Mtex-DN: API Plan 52 (53/54)
- Mtex9-DN: API Plan 53/54
- Cartridge
- Balanced
- Independent of direction of rotation
- Metal bellows
- Stationary O-Ring
- Pumping device independent of direction
Application
- Process industry
- Chemical industry
- Hot media handling
- Cold media handling
- Highly viscous media
- Special rotating equipment

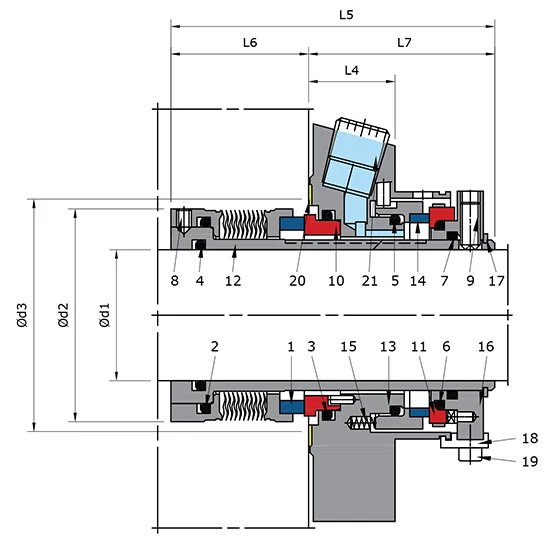

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Bellow Unit | 12 | Shaft Sleeve |
| 2 | O-Ring | 13 | Housing |
| 3 | O-Ring | 14 | Seal Face |
| 4 | O-Ring | 15 | Spring |
| 5 | O-Ring | 16 | Drive Collar |
| 6 | O-Ring | 17 | Snap Ring |
| 7 | O-Ring | 18 | Assembly Fixture |
| 8 | Set Screw | 19 | HSH Cap Screw |
| 9 | Set Screw | 20 | Gasket |
| 10 | Seat | 21 | Screw Plug |
| 11 | Seat |
