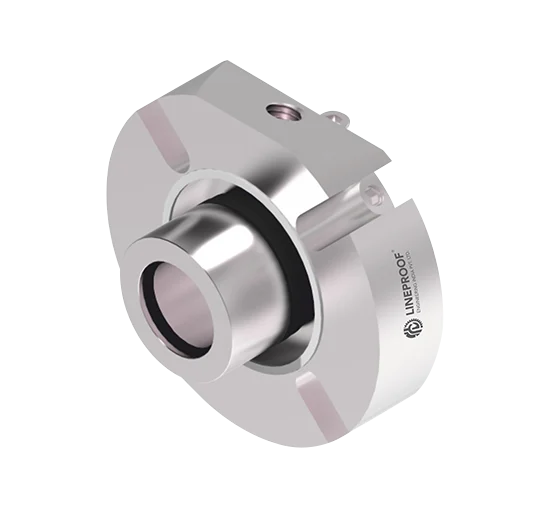

ANSI Standard Single Cartridge Seal
ANSI LP300
The ANSI Standard Single Cartridge Seal is designed for efficient sealing in pumps operating under standard industrial conditions. Its single cartridge design allows quick installation, accurate alignment, and reduced maintenance while providing stable sealing performance for various process fluids. Since 2002, Lineproof Engineering, based in Mumbai, has specialized in manufacturing precision-engineered mechanical shaft seals and single cartridge sealing solutions that deliver consistent performance, durability, and operational reliability across multiple process industries.
Face Material
Silicon Carbide, Carbon Graphite (Resin Impregnated), Tungsten Carbide.Metal Parts
SS 316, SS 304.Secondary Seal
EPDM, FKM, FFKM, PTFE.Operating Limits
- Shaft Diameter 1.000" to 3.750"
- Pressure 25 bar
- Temperature −40 °C to 220 °C
- Velocity 16 m/s
Characteristics
- Single seal
- Available for standard (LP300-ASPN) and big bore (LP300-ASPN) seal chambers
- Cartridge
- Balanced
- Independent of direction of rotation
- Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or throttle ring (-ASTN, -ABTN)
Application
- Process industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry

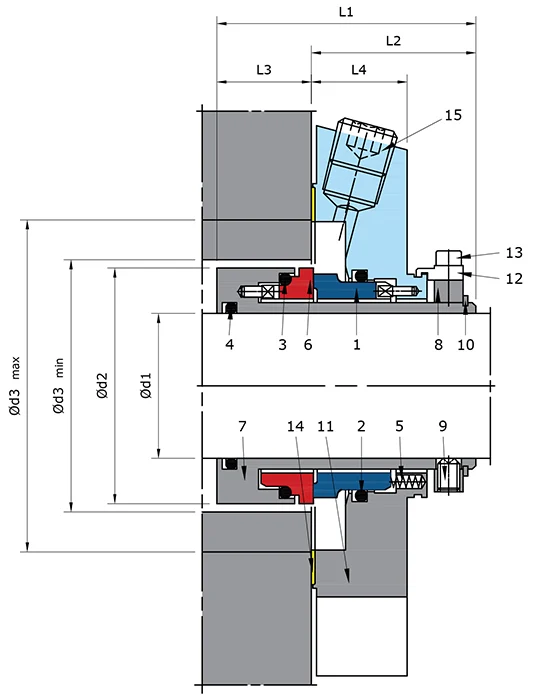

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face | 9 | Set Screw |
| 2 | O-Ring | 10 | Snap Ring |
| 3 | O-Ring | 11 | Cover |
| 4 | O-Ring | 12 | Assembly Fixture |
| 5 | Spring | 13 | Screw |
| 6 | Seat | 14 | Gasket |
| 7 | Shaft Sleeve | 15 | Screw Plug |
| 8 | Drive Collar | 16 | Lip Seal (-QN) / Throttle Ring (-TN) |
