Standard Cartridge Seals
Standard Dual Cartridge Seal
LP350

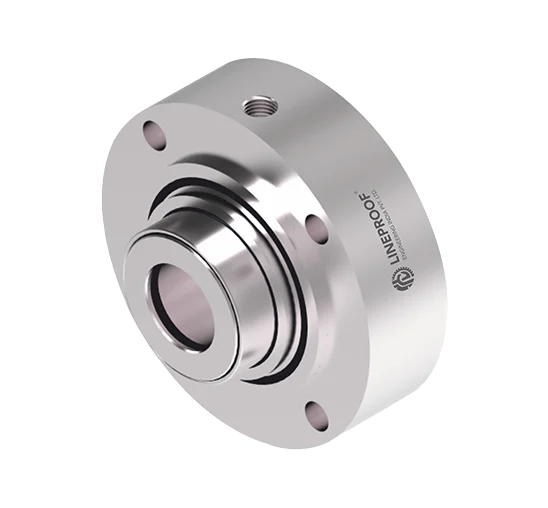

The Standard Dual Cartridge Seal is designed for secure sealing in pumps handling hazardous, volatile, or high-temperature fluids. Its dual cartridge arrangement provides an additional sealing barrier and supports effective barrier or buffer fluid circulation, improving leakage control and operational safety in demanding process environments. Since 2002, Lineproof Engineering, based in Mumbai, has been developing precision mechanical shaft seals and advanced cartridge sealing solutions engineered to meet the reliability and performance requirements of modern process industries.
Face Material
Blister-Resistant Carbon, Silicon Carbide (SSiC).Metal Parts
SS 316, SS 304.Secondary Seal
EPDM, NBR, FKM, FFKM.Operating Limits
- Shaft Diameter 20 mm to 110 mm
- Pressure 22 bar
- Temperature −40 °C to 176 °C
- Velocity 23 m/s
Characteristics
- Dual seal
- Cartridge unit
- Category 1, Type A, Arrangement 2 or 3
- Balanced
- Independent of direction of rotation
Application
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Highly volatile hydrocarbons

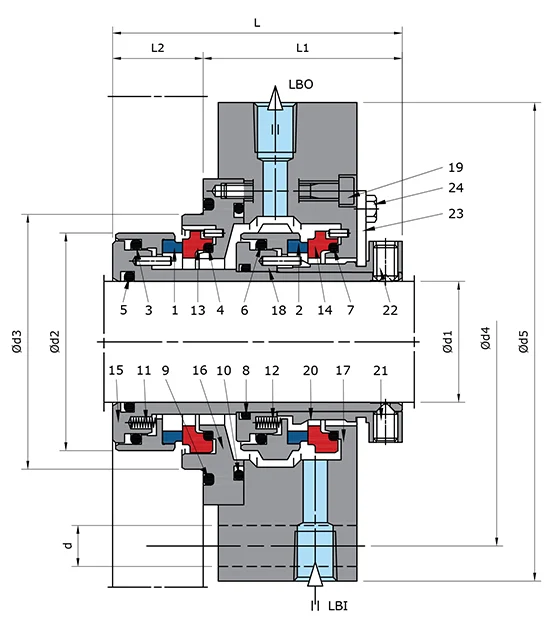

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Ring | 13 | Mating Ring |
| 2 | Seal Ring | 14 | Mating Ring |
| 3 | O-Ring | 15 | Seal Sleeve |
| 4 | O-Ring | 16 | Gland Plate |
| 5 | O-Ring | 17 | Gland Plate |
| 6 | O-Ring | 18 | Driver |
| 7 | O-Ring | 19 | HSH Cap Screw |
| 8 | O-Ring | 20 | Set Ring |
| 9 | O-Ring | 21 | Set Screw |
| 10 | O-Ring | 22 | Set Screw |
| 11 | Spring | 23 | Setting Device |
| 12 | Spring | 24 | Hexagon Bolt |
