Seal Support System

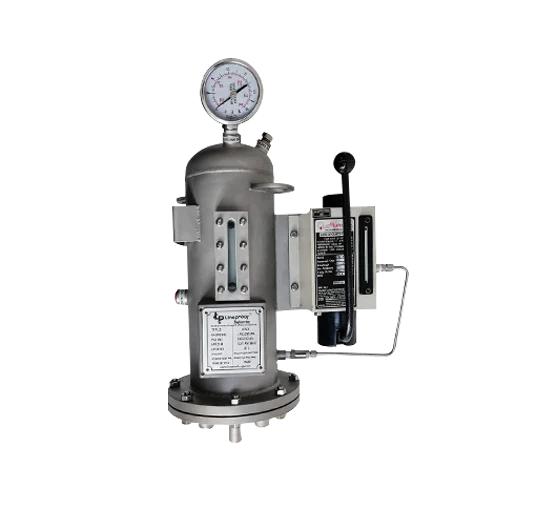

Thermosyphon Pot System
LPTS411
The Thermosyphon Pot System is designed to dissipate heat from mechanical seals during operation. It uses the principle of passive heat exchange, circulating fluid through natural convection without the need for a mechanical pump. Barrier or buffer fluid flows to the seal and back to the system via the Thermosyphon effect, where hotter, lower-density fluid rises while cooler, higher-density fluid sinks. Ideal for double mechanical seals, it provides effective lubrication and cooling to the seal faces, ensuring optimal seal life. The system includes an internal cooling coil to reduce the temperature of the barrier fluid returning from the seal to the Thermosyphon vessel.
Material of Construction
Tank: SS316, SS304, Carbon Steel.
Coil Cool: SS316, SS304, Copper.
Basic Components
Tank: Slight glass.
Cooling coils: Manometer.
Pressure switch: Level switch.
Operating Limits
- Tank Size 3 Ltr to 25 Ltr
- Pressure 20 to 30 Bar (max.)
- Temperature -60˚C to 200˚C
Characteristics
- Ensures continuous cooling media flow to seals
- Maintains required pressure for lubrication
- Extends seal life
- Operates without a mechanical pump
- Reduces heat buildup
Application
- Double mechanical seals in pumps
- Compressors and mixers
- Chemical and process industry equipment
- Rotating machinery requiring seal cooling and lubrication
