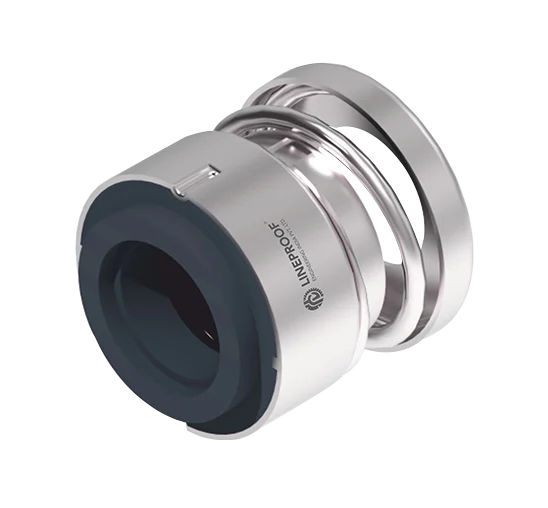

Elastomer Bellows Mechanical Seal
LP365
The Elastomer Bellows Mechanical Seal is designed for dependable sealing in pumps handling clean and light-duty fluids. Its flexible elastomer bellows design eliminates the need for dynamic O-rings, allowing smooth axial movement and reliable face loading while reducing shaft wear and maintenance requirements. Since 2002, Lineproof Engineering, based in Mumbai, has been engaged in producing precision mechanical shaft seals and advanced sealing components developed to support consistent performance and durability in modern industrial operations.
Face Material
Carbon Graphite (Resin Impregnated), Silicon Carbide.Metal Parts
SS 316, SS 304.Secondary Seal
NBR, FKM.Operating Limits
- Shaft Diameter 8 mm to 50 mm
- Pressure 7 bar
- Temperature −20 °C to 100 °C
- Velocity 5 m/s
Characteristics
- Single seal
- Loosely inserted seal face provides self-adjusting capability
- In-house manufactured sliding parts
Application
- Process industry operations
- Chemical industry applications
- Pulp and paper processing
- Water and wastewater technology
- Glycol handling systems
- Oil handling operations

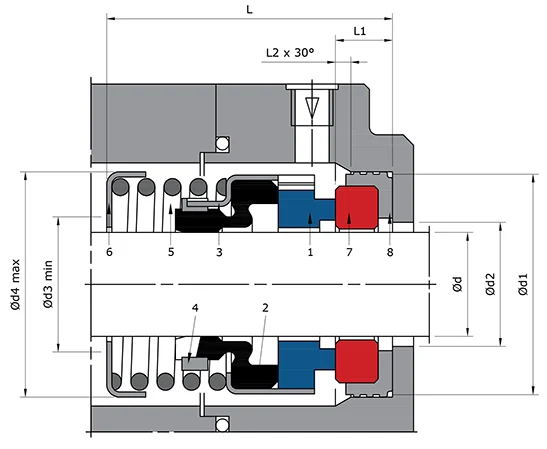

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face | 5 | Spring |
| 2 | Bellows | 6 | Spring Holder |
| 3 | Spring Collar | 7 | Seat |
| 4 | Drive Collar | 8 | Corner Sleeve |
