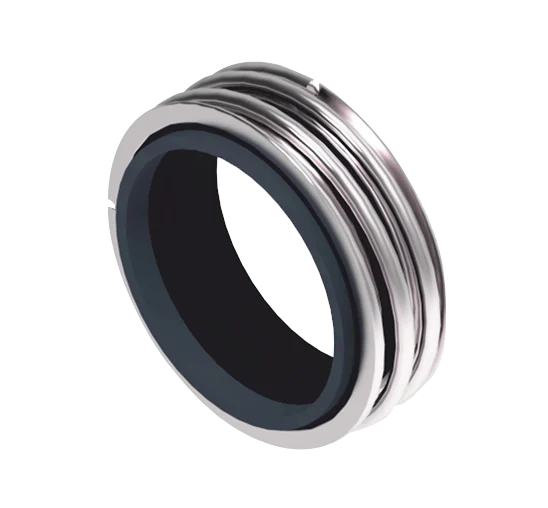

Elastomer Bellows Mechanical Seal
LP360
The Elastomer Bellows Mechanical Seal is designed for dependable sealing in pumps handling clean and light-duty fluids. Its flexible elastomer bellows design eliminates the need for dynamic O-rings, allowing smooth axial movement and reliable face loading while reducing shaft wear and maintenance requirements. Since 2002, Lineproof Engineering, based in Mumbai, has been engaged in producing precision mechanical shaft seals and advanced sealing components developed to support consistent performance and durability in modern industrial operations.
Face Material
Carbon Graphite (Antimony Impregnated), Carbon Graphite (Resin Impregnated), Silicon Carbide, Tungsten Carbide.Metal Parts
SS 316, SS 304.Secondary Seal
NBR, EPDM, FKM, HNBR.Operating Limits
- Shaft Diameter 10 mm to 100 mm
- Pressure 16 bar
- Temperature −20 °C to 140 °C
- Velocity 10 m/s
Characteristics
- For plain shafts
- Single and dual seal
- Elastomer bellows rotating
- Unbalanced
- Independent of direction of rotation
- No torsion on bellows
Application
- Process industry operations
- Chemical industry applications
- Pulp and paper processing
- Water and wastewater technology
- Food and beverage processing
- Sugar processing industry

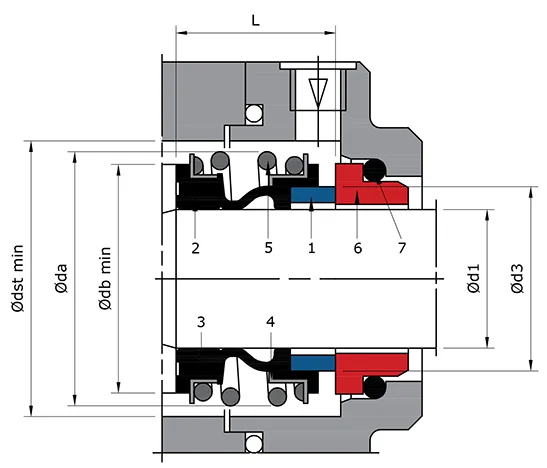

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face | 5 | Spring |
| 2 | Bellows | 6 | Seat |
| 3 | "L"-Ring (Spring Collar) | 7 | O-Ring or Rubber Cup |
| 4 | "L"-Ring (Spring Collar) |
