Mechanical Seals

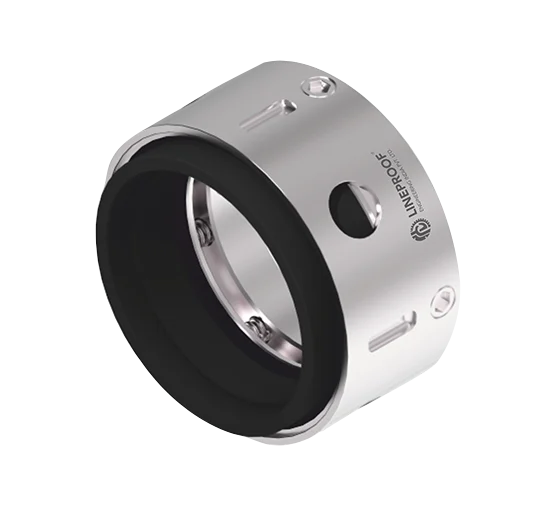

Multi Spring Balanced Seal
LP20 & LP21
The Multi Spring Balanced Seal is engineered for reliable sealing in pumps operating under high pressure and demanding process conditions. Its multi-spring arrangement provides uniform face loading, while the balanced seal design reduces hydraulic forces on the seal faces, ensuring stable performance, lower wear, and longer service life. Established in 2002, Lineproof Engineering in Mumbai designs and supplies precision mechanical shaft seals and engineered sealing systems developed to enhance pump efficiency, operational stability, and process reliability across various industrial sectors.
Face Material
Carbon, Ceramic, Silicon Carbide, Tungsten Carbide, Lecrolloy.Metal Parts
SS 316, SS 304, Hastelloy C, Monel, Alloy 20.Secondary Seal
Elastomers, PTFE, GFTOperating Limits
- Shaft Diameter 14 mm to 100 mm
- Pressure 35 bar (max.)
- Temperature −60 °C to 200 °C
- Velocity 20 m/s
Characteristics
- Single acting
- Balanced
- Inside mounted
- Independent of direction of rotation
- Conforms to DIN 24960
Application
- Petrochemical processing
- Petroleum refinery operations
- General chemical handling
- Light hydrocarbon services
- Industrial pump systems
- Process equipment handling

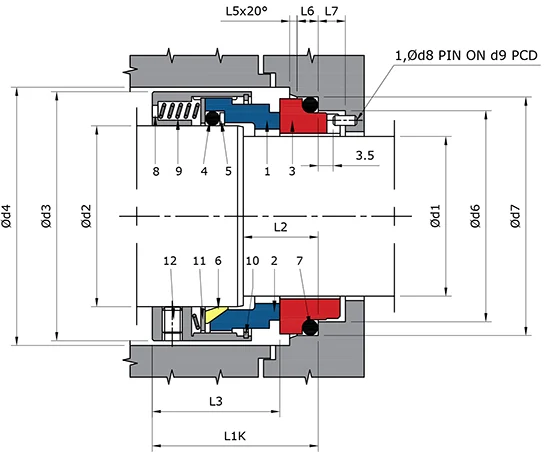

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Ring | 7 | O-Ring |
| 2 | Seal Ring | 8 | Retainer |
| 3 | Mating Ring | 9 | Spring |
| 4 | O-Ring | 10 | Snap Ring |
| 5 | Back-Up Ring | 11 | Thrust Ring |
| 6 | Wedge | 12 | Grub Screw |
