Metal Bellows Mechanical Seal
LP101

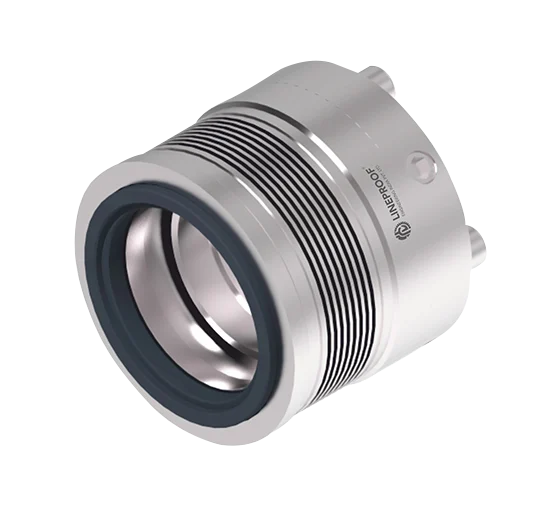

The Metal Bellows Mechanical Seal is designed for reliable sealing in pumps handling high-temperature and high-pressure applications. Its welded metal bellows construction eliminates the need for dynamic O-rings, providing consistent face loading and resistance to thermal expansion, making it ideal for demanding process conditions. Since 2002, Lineproof Engineering, based in Mumbai, has been developing precision mechanical shaft seals and advanced bellows sealing solutions that deliver durability, efficiency, and dependable performance across process industries.
Face Material
Carbon Graphite (Antimony Impregnated), Silicon Carbide.Metal Parts
SS 316, SS 304, Duplex. Bellows: Inconel 718.Secondary Seal
FKM.Operating Limits
- Shaft Diameter 16 mm to 100 mm
- Pressure 25 bar
- Temperature −20 °C to 400 °C
- Velocity 20 m/s
Characteristics
- For unstepped shafts
- Rotating bellows
- Single seal
- Balanced
- Independent of direction of rotation
- Metal bellows
Application
- Process industry operations
- Oil and gas industry
- Refining technology applications
- Petrochemical industry services
- Chemical industry applications
- Pulp and paper processing

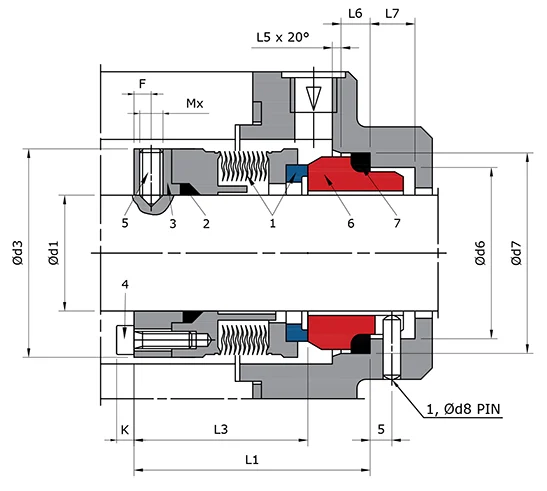

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face with Bellow Unit | 5 | Set Screw |
| 2 | Sealing Ring | 6 | Seat |
| 3 | Drive Collar | 7 | Sealing Ring |
| 4 | HSH Cap Screw |
