Mechanical Seals

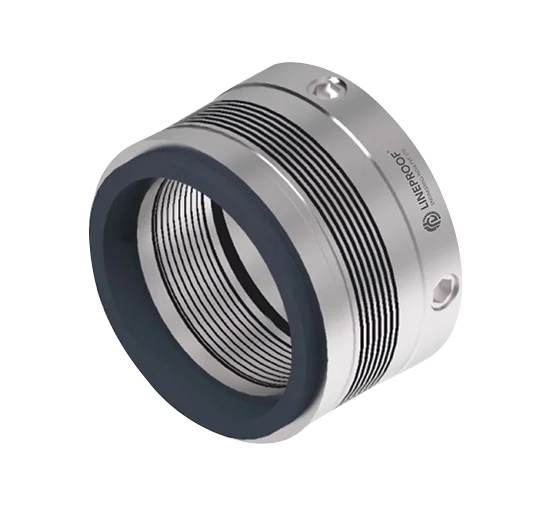

Metal Bellows Mechanical Seal
LP100
The Metal Bellows Mechanical Seal is designed for reliable sealing in pumps handling high-temperature and high-pressure applications. Its welded metal bellows construction eliminates the need for dynamic O-rings, providing consistent face loading and resistance to thermal expansion, making it ideal for demanding process conditions. Since 2002, Lineproof Engineering, based in Mumbai, has been developing precision mechanical shaft seals and advanced bellows sealing solutions that deliver durability, efficiency, and dependable performance across process industries.
Face Material
Silicon Carbide, Carbon Graphite.Metal Parts
SS 316, SS 304, Duplex. Bellows: Inconel 625.Secondary Seal
FKM.Operating Limits
- Shaft Diameter 20 mm to 100 mm
- Pressure 25 bar
- Temperature −40 °C to 220 °C
- Velocity 20 m/s
Characteristics
- For unstepped shafts
- Rotating bellows
- Single seal
- Balanced
- Independent of direction of rotation
Application
- Process industry equipment
- Refining technology applications
- Petrochemical industry services
- Chemical industry operations
- Hot media handling
- Cold media handling

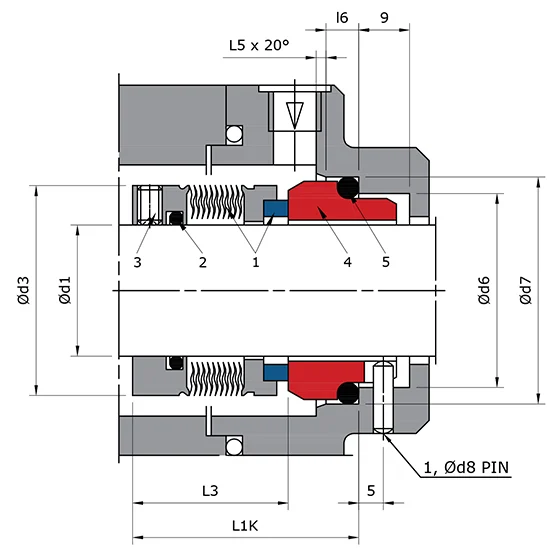

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face with Bellow Unit | 4 | Seat |
| 2 | O-Ring | 5 | O-Ring |
| 3 | Set Screw |
