Mechanical Seals

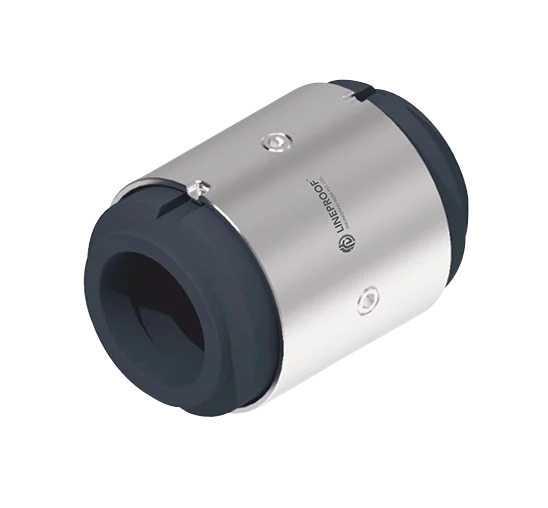

Multi Spring Dual Seal
LP90D
The Multi Spring Dual Seal is designed for reliable sealing in pumps handling hazardous, high-pressure, and corrosive fluids. Its multi-spring design provides uniform face loading and improved heat dissipation, while the dual seal arrangement offers enhanced leakage protection and operational safety in demanding process environments. Since 2002, Lineproof Engineering, based in Mumbai, has been manufacturing precision mechanical shaft seals and advanced dual sealing solutions that enhance equipment reliability and process safety across diverse industrial applications.
Face Material
Silicon Carbide, Carbon Graphite.Metal Parts
SS 316, SS 304.Secondary Seal
EPDM, NBR, FKM, FFKM.Operating Limits
- Shaft Diameter 14 mm to 100 mm
- Pressure 25 bar (max.)
- Temperature −50 °C to 220 °C
- Velocity 20 m/s
Characteristics
- For stepped shafts
- Dual seal
- Balanced
- Rotating multiple springs
- Independent of direction of rotation
- Seal concept based on the H7 range
- Variant with pumping screw available (H74F-D)
Application
- Process industry operations
- Oil and gas industry
- Refining technology applications
- Petrochemical industry services
- Chemical industry applications
- Power plant operations

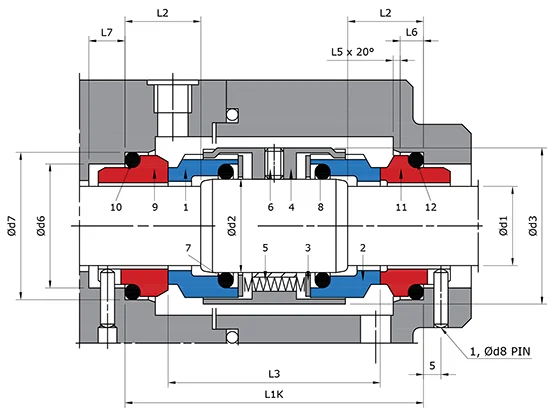

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face | 7 | O-Ring |
| 2 | Seal Face | 8 | O-Ring |
| 3 | Thrust Ring | 9 | Seat |
| 4 | Drive Collar | 10 | O-Ring |
| 5 | Spring | 11 | Seat |
| 6 | Set Screw | 12 | O-Ring |
