Mechanical Seals

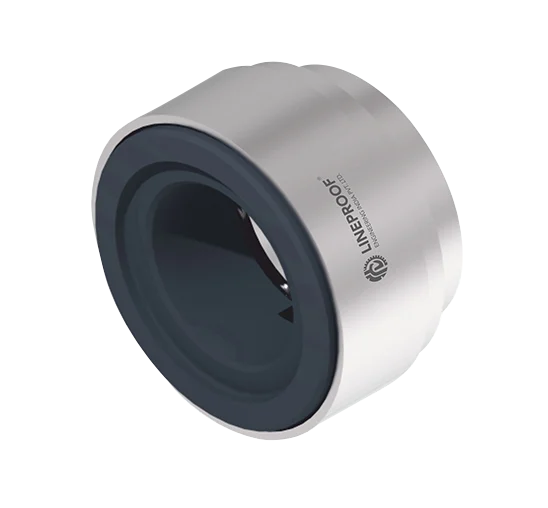

Pusher Mechanical Seal
LP92RN
The Pusher Mechanical Seal is designed for reliable sealing in pumps and rotating equipment operating under varied pressure and temperature conditions. Its spring-loaded pusher design allows axial movement to compensate for wear, ensuring consistent sealing performance and adaptability across multiple industrial applications. Since 2002, Lineproof Engineering, based in Mumbai, has been producing high-quality mechanical shaft seals and engineered sealing solutions that support efficient equipment operation and long-term reliability across process industries.
Face Material
Silicon Carbide, Carbon Graphite.Metal Parts
SS 316, SS 304.Secondary Seal
EPDM, NBR, FKM, FFKM.Operating Limits
- Shaft Diameter 18 mm to 100 mm
- Pressure 25 bar (max.)
- Temperature −40 °C to 220 °C
- Velocity 20 m/s
Characteristics
- Single seal
- Balanced
- Independent of direction of rotation
- Stationary springs
- Dual seals in tandem as well as back-to-back arrangements (also in combination with H10 seal)
Application
- Pulp and paper processing
- Water and wastewater technology
- Dirty abrasive media handling
- Fugitive hydrocarbon services
- Chemical standard pumps
- Industrial process pumps

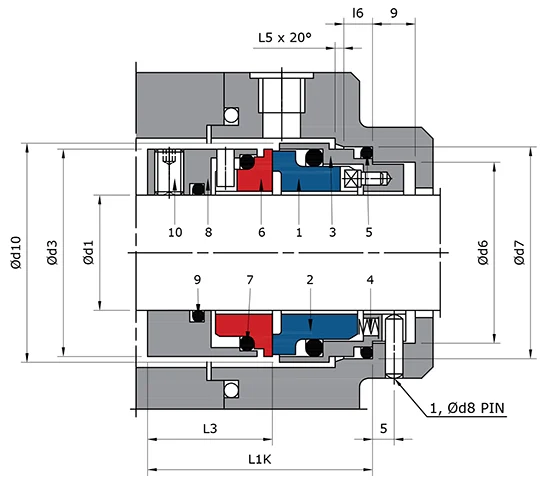

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Ring | 6 | Seat |
| 2 | O-Ring | 7 | O-Ring |
| 3 | Retainer | 8 | Drive Collar |
| 4 | Spring | 9 | O-Ring |
| 5 | O-Ring | 10 | Set Screw |
