Reactor Double Mechanical Seal
LPMIX400
The Dry Running Mechanical Seal is designed for applications where conventional liquid lubrication is not available. Engineered with specialized materials and seal face technology, it operates reliably without external fluid lubrication, reducing wear and ensuring stable performance in demanding dry-running conditions. Since 2002, Lineproof Engineering, based in Mumbai, has been offering precision-engineered mechanical shaft seals and advanced sealing solutions designed to support safe, efficient, and dependable operation across diverse industrial environments.
Face Material
Carbon Graphite, Silicon Carbide.Secondary Seal
Metal parts according to application and customer’s specification.Operating Limits
- Shaft Diameter 40 mm to 200 mm
- Pressure 6 bar
- Temperature −20 °C to 150 °C
- Speed 2 m/s
Characteristics
- For top entry drives
- For steel vessels acc. to DIN or Non-DIN
- Nitrogen pressurized dual seal, single seal optional
- Balanced
- Independent of direction of rotation
- Multiple rotating springs
- Dry running
- Cartridge unit
Application
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Food and beverage industry
- Agitators and mixers

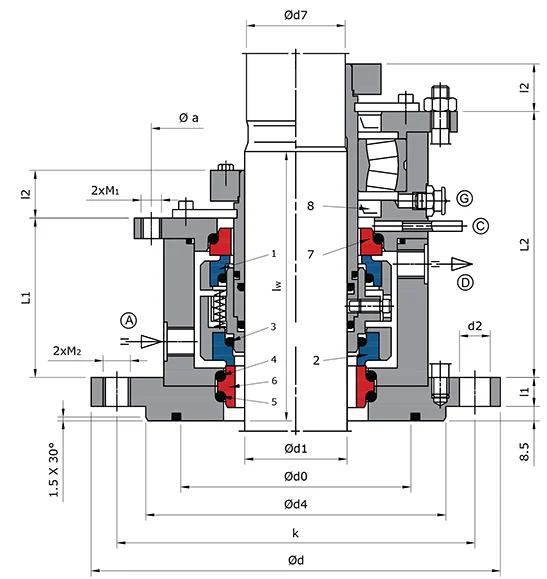

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face, Atmosphere Side | 5 | O-Ring |
| 2 | Seal Face, Product Side | 6 | Seat, Product Side |
| 3 | O-Ring | 7 | Seat, Atmosphere Side |
| 4 | O-Ring | 8 | Lip Seal |
