Mechanical Seals
Single Spring Mechanical Seal
LPE80 & LPE85
The Single Spring Mechanical Seal is designed for reliable sealing in pumps and rotating equipment used in various industrial applications. Its single spring mechanism ensures uniform face pressure and a compact design, providing stable sealing performance and easy maintenance in standard operating conditions. Established in 2002, Lineproof Engineering, located in Mumbai, focuses on developing high-quality mechanical shaft seals and engineered sealing components that help industries maintain smooth operations, minimize leakage, and improve equipment efficiency.
Face Material
Carbon, Ceramic, Silicon Carbide, Tungsten Carbide, Lecrolloy.Metal Parts
SS 316, SS 304.Secondary Seal
Elastomers, PTFE, GFT.Operating Limits
- Shaft Diameter 0.875" to 3.5"
- Pressure 14 bar (max.)
- Temperature −23 °C to 200 °C
- Velocity 20 m/s
Characteristics
- Single acting
- Unbalanced
- Inside mounted
- Independent of direction of rotation
- Universal chemical compatibility due to PTFE elastomer
Application
- Crystallizing slurry handling
- Suspended solids slurry
- Saturated chemical slurry
- General chemical slurry
- Industrial slurry pumps
- Process equipment handling

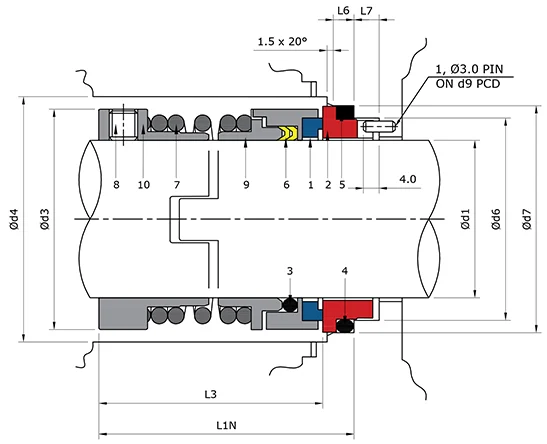

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Ring | 6 | V-Packing |
| 2 | Mating Ring | 7 | Spring |
| 3 | O-Ring | 8 | Grub Screw |
| 4 | O-Ring | 9 | Spring Holder |
| 5 | M Ring Packing | 10 | Drive Collar |
