Split Seals

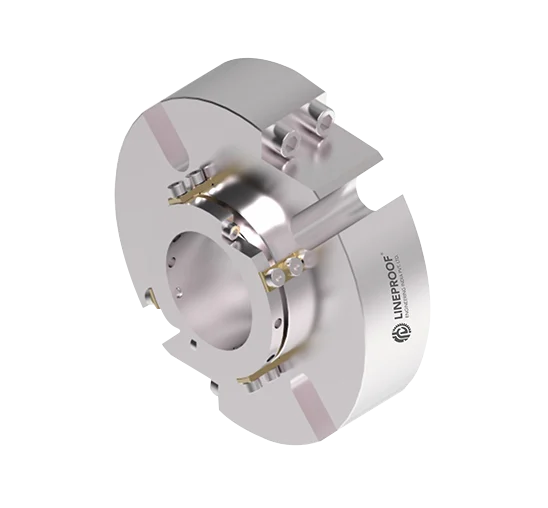

Split Mechanical Seal
LP385
The Split Mechanical Seal is designed for easy installation and maintenance in pumps and rotating equipment where dismantling the shaft is difficult. Its split construction allows the seal to be installed around the shaft without removing major equipment components, reducing downtime while maintaining effective sealing performance. Since 2002, Lineproof Engineering, based in Mumbai, has been delivering precision mechanical shaft seals and innovative sealing systems developed to improve maintenance efficiency and operational reliability across industrial applications.
Face Material
Silicon Carbide, Carbon.Metal Parts
SS 316L, Duplex.Secondary Seal
Viton, Aflas.Operating Limits
- Shaft Diameter 45 mm to 219 mm
- Pressure 17 bar
- Temperature 175 °C
- Speed 3600 RPM
Application
- Chemical processing
- Food processing
- Mining industry
- Pharmaceutical industry
- Power generation
- Petrochemical industry

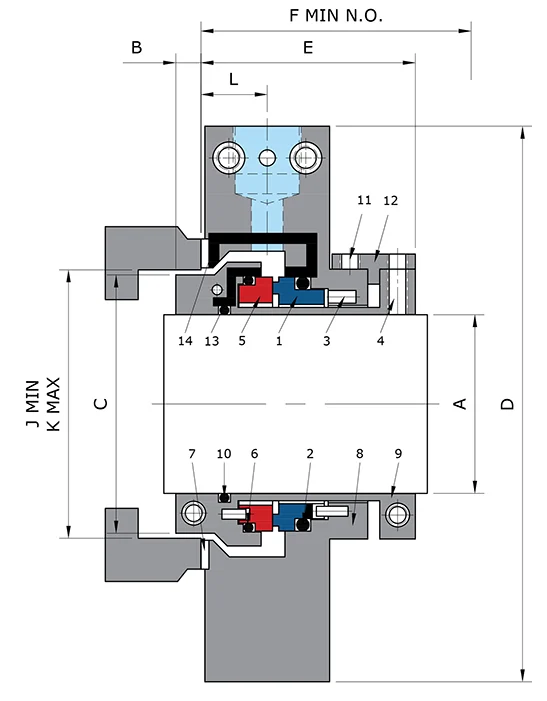

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Ring | 8 | Gland Plate |
| 2 | O-Ring | 9 | Sleeve |
| 3 | Spring | 10 | O-Ring |
| 4 | Set Screw | 11 | Allen Cap Screw |
| 5 | Seat | 12 | Assembly Fix. |
| 6 | O-Ring | 13 | Gasket |
| 7 | Gasket | 14 | Gasket |
