Standard Cartridge Seals
Standard Cartridge Mechanical Seal
LP330

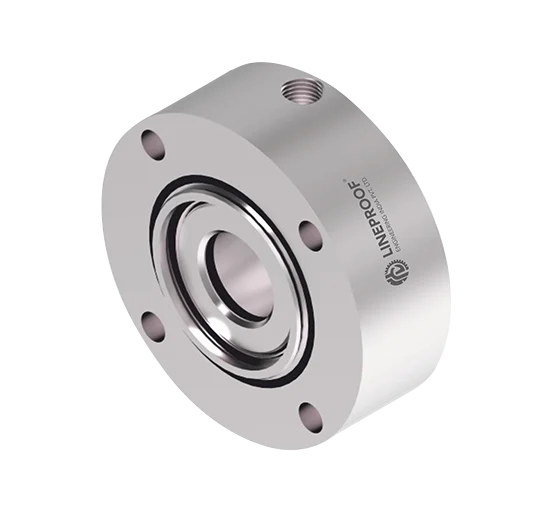

The Standard Cartridge Mechanical Seal is designed for reliable sealing in pumps and rotating equipment across a wide range of industrial applications. Its pre-assembled cartridge design simplifies installation, ensures correct alignment, and minimizes installation errors while delivering consistent sealing performance and reduced maintenance requirements. Since 2002, Lineproof Engineering, based in Mumbai, has been dedicated to engineering mechanical shaft seals and cartridge sealing solutions that help industries maintain equipment efficiency, reduce downtime, and ensure dependable process operations.
Face Material
Blister-Resistant Carbon, Silicon Carbide (SSiC).Metal Parts
SS 316, SS 304.Secondary Seal
EPDM, NBR, FKM, FFKM.Operating Limits
- Shaft Diameter 20 mm to 110 mm
- Pressure 22 bar
- Temperature −40 °C to 176 °C
- Velocity 23 m/s
Characteristics
- Single seal
- Cartridge unit
- Category 1, Type A, Arrangement 1
- Balanced
- Independent of direction of rotation
- Shrink-fitted seal faces
- Solid mating ring
Application
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Highly volatile hydrocarbons

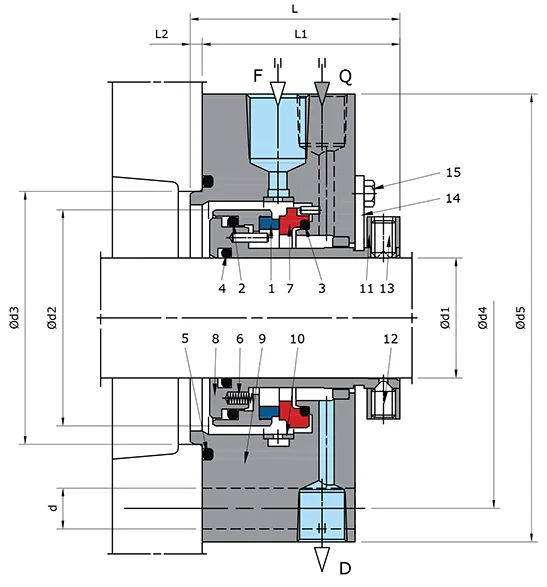

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Ring | 9 | Gland Plate |
| 2 | O-Ring | 10 | Flow Distributor |
| 3 | O-Ring | 11 | Set Ring |
| 4 | O-Ring | 12 | Set Screw |
| 5 | O-Ring | 13 | Set Screw |
| 6 | Spring | 14 | Setting Device |
| 7 | Mating Ring | 15 | Hexagon Bolt |
| 8 | Seal Sleeve |
