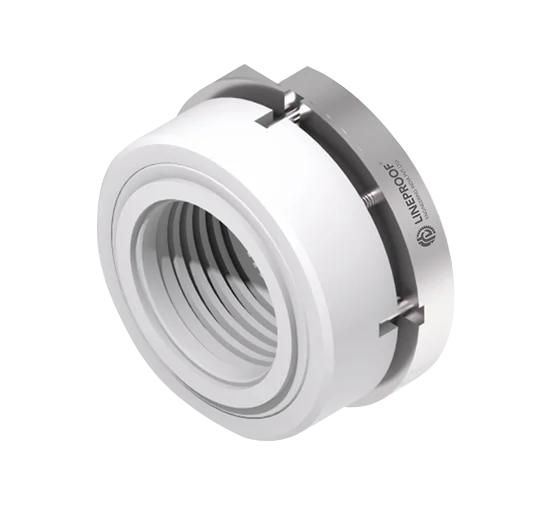

Teflon Bellow Mechanical Seal
LP60
The Teflon Bellows Mechanical Seal is designed for sealing pumps handling corrosive and chemically aggressive fluids. Its PTFE (Teflon) bellows construction offers excellent chemical resistance and flexibility, allowing reliable sealing performance without the need for dynamic O-rings, making it suitable for demanding chemical processing applications. Founded in 2002, Lineproof Engineering, headquartered in Mumbai, delivers precision-engineered mechanical shaft seals and specialized sealing technologies developed to meet the evolving requirements of modern process industries.
Face Material
GFT, Ceramic, Silicon Carbide, Carbon.Metal Parts
SS 316, SS 304, Hastelloy C. Spring: Hastelloy C.Secondary Seal
PTFE Bellows.Operating Limits
- Shaft Diameter 0.75" to 4.0"
- Pressure 6 bar (max.)
- Temperature −45 °C to 120 °C
- Velocity 20 m/s
Characteristics
- Single acting
- Outside mounted
- Independent of direction of rotation
Application
- Corrosive chemical services
- Chemical process equipment
- Acid handling operations
- Alkali handling operations
- Industrial pump systems
- Specialty reactor equipment

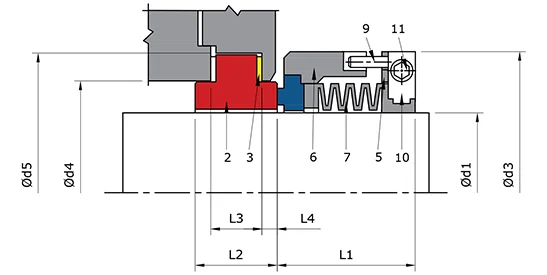

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Ring | 7 | Bellows |
| 2 | Mating Ring | 8 | Bellows |
| 3 | Gasket | 9 | Drive Pin |
| 4 | Spring | 10 | Clamp Ring |
| 5 | Thrust Ring | 11 | Allen Screw |
| 6 | Spring Holder |
