Mechanical Seals

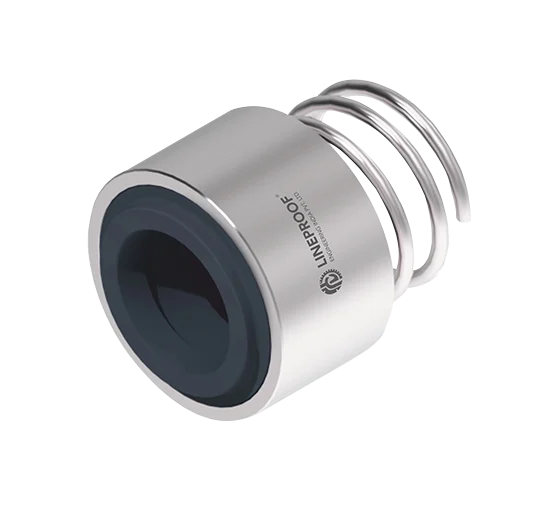

Conical Spring Mechanical Seal
LP98N
The Conical Spring Mechanical Seal is designed for reliable sealing in pumps handling clean and light-duty fluids. Its conical spring design provides uniform face loading and helps prevent clogging, ensuring stable sealing performance and smooth operation in various industrial applications. Since 2002, Lineproof Engineering, based in Mumbai, has been manufacturing precision mechanical shaft seals and engineered sealing components that support efficient pump performance and dependable operation across diverse process industries.
Face Material
Silicon Carbide, Carbon Graphite.Metal Parts
SS 316, SS 304.Secondary Seal
EPDM, NBR, FKM, FFKM.Operating Limits
- Shaft Diameter 10 mm to 80 mm
- Pressure 25 bar
- Temperature −50 °C to 220 °C
- Velocity 15 m/s
Characteristics
- For stepped shafts
- Single seal
- Balanced
- Dependent on direction of rotation
- Torque transmission via conical spring
Application
- Chemical industry applications
- Pulp and paper processing
- Water and wastewater technology
- Low solids content media
- Hot water applications
- Chemical standard pumps

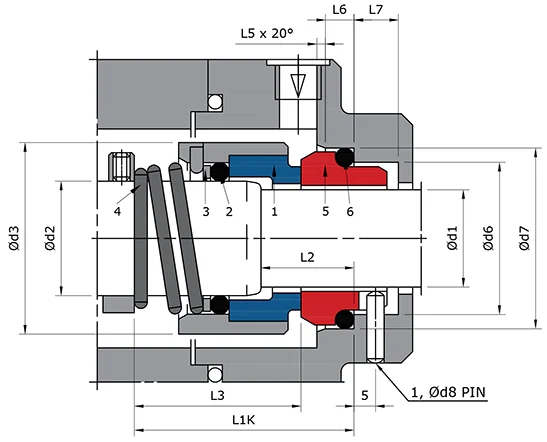

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face | 4 | Right Hand Spring / Left Hand Spring |
| 2 | O-Ring | 5 | Seat |
| 3 | Thrust Ring | 6 | O-Ring |
