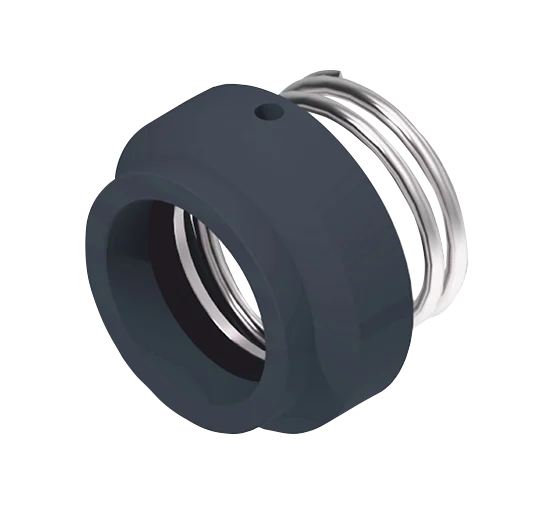

Conical Spring Mechanical Seal
LP83N
The Conical Spring Mechanical Seal is designed for dependable sealing in pumps and rotating equipment used in general industrial applications. Its conical spring construction provides consistent face loading and a self-cleaning action that helps prevent clogging from process fluids, ensuring stable performance and reliable operation. Since 2002, Lineproof Engineering, based in Mumbai, has been manufacturing precision mechanical shaft seals and engineered spring seal solutions designed to deliver durability, efficiency, and consistent sealing performance across process industries.
Face Material
Carbon Graphite.Metal Parts
SS 316, SS 304.Secondary Seal
EPDM, NBR, FKM, FFKM.Operating Limits
- Shaft Diameter 6 mm to 80 mm
- Pressure 10 bar (max.)
- Temperature −20 °C to 140 °C
- Velocity 15 m/s
Characteristics
- For plain shafts
- Single seal
- Unbalanced
- Rotating conical spring
- Dependent on direction of rotation
Application
- Chemical industry applications
- Pulp and paper industry
- Water and wastewater technology
- Building services industry
- Food and beverage industry
- Sugar processing industry

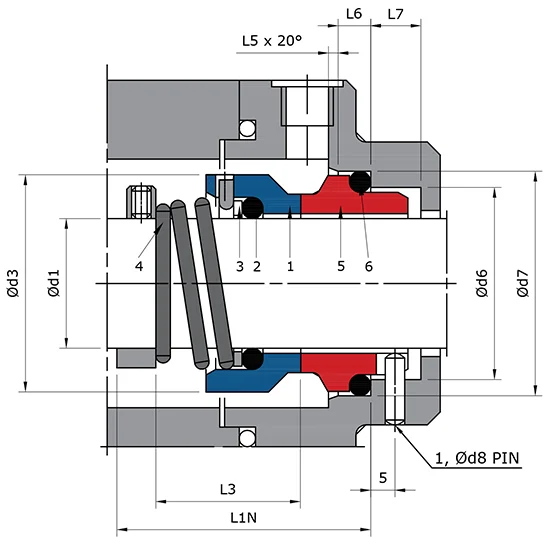

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Seal Face | 4 | Right Hand Spring / Left Hand Spring |
| 2 | O-Ring | 5 | Seat |
| 3 | Thrust Ring | 6 | O-Ring |
