Carbon Floating Ring Seals

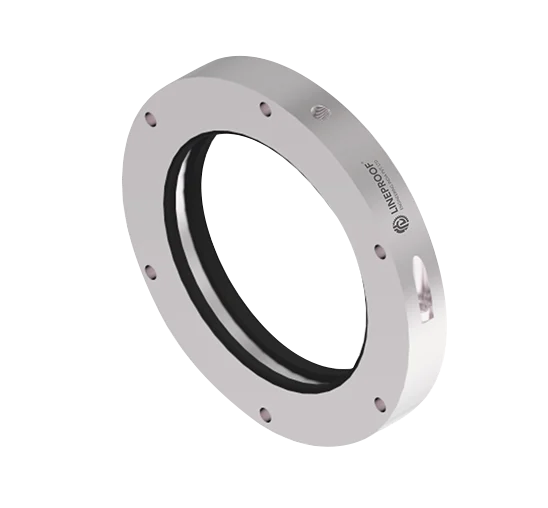

Carbon Floating Ring Seal
LPEWD200
The Carbon Floating Ring Seal is designed to prevent leakage in pumps and rotating equipment by creating a secure seal between the rotating shaft and stationary housing. Engineered for durability and consistent sealing performance, it helps protect equipment, reduce fluid loss, and support efficient operation across various industrial applications. Since 2002, Lineproof Engineering, based in Mumbai, has been providing precision-engineered mechanical shaft seals and reliable sealing components designed to meet the operational needs of modern process industries.
Face Material
Carbon Graphite.Metal Parts
SS 316, SS 304, Duplex.Operating Limits
- Shaft Diameter 45 mm to 340 mm
- Pressure 20 bar (max.)
- Temperature −120 °C to 800 °C
- Speed 150 m/s
Characteristics
- Multi-part seal rings, radially cut
- Split housing design
- Very small operation gap – low leakage
- Dry running
- Self-adjusting seal rings
- Handles radial shaft movements
- Compensates axial shaft movements
- No sealing components on shaft – no added vibrations
- Contact-free seal rings – no additional power loss
Application
- Chemical industry
- Waste incineration industry
- Power plant technology
- Petrochemical industry
- Food processing industry
- Metal production industry

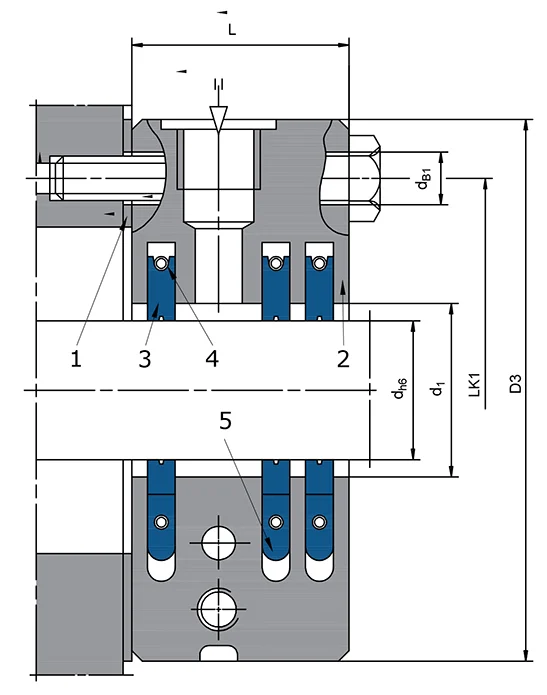

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Flat Seal | 4 | Tension Spring |
| 2 | Housing, 2 Piece | 5 | Detent |
| 3 | Seal Ring |
