Carbon Floating Ring Seals

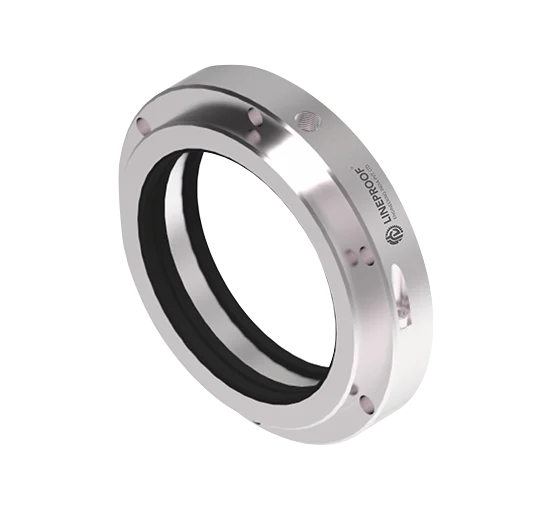

Carbon Floating Ring Seal
LPEWD500
The Carbon Floating Ring Seal is designed to prevent leakage in pumps and rotating equipment by creating a secure seal between the rotating shaft and stationary housing. Engineered for durability and consistent sealing performance, it helps protect equipment, reduce fluid loss, and support efficient operation across various industrial applications. Since 2002, Lineproof Engineering, based in Mumbai, has been providing precision-engineered mechanical shaft seals and reliable sealing components designed to meet the operational needs of modern process industries.
Face Material
Carbon Graphite.Metal Parts
SS 316, SS 304, Duplex.Operating Limits
- Shaft Diameter 45 mm to 300 mm
- Pressure 3 bar (max.)
- Temperature −120 °C to 500 °C
- Speed 40 m/s
Characteristics
- Multi-part seal rings, overlapped mortised with gas-tight joints (adjusting)
- Split housing design
- Lowest possible operation gap – minimal leakage
- Dry running
- Self-adjusting seal rings
- Handles radial shaft movements
- Compensates axial shaft movements
- Short axial installation length
- No shaft-mounted sealing components – no additional vibrations
Application
- Chemical industry
- Waste incineration industry
- Pulp and paper industry
- Lime and cement industry
- Mining industry
- Water and wastewater technology

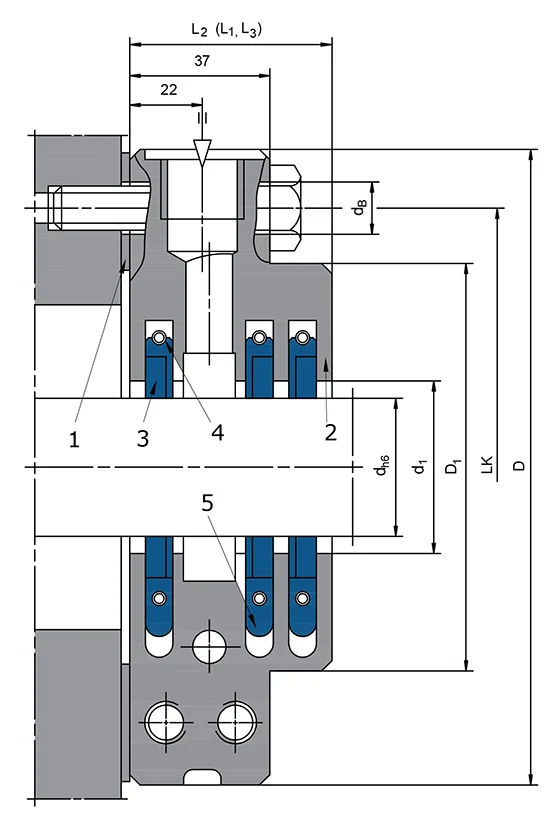

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Flat Seal | 4 | Tension Spring |
| 2 | Housing, 2 Piece | 5 | Detent |
| 3 | Seal Ring |
