Carbon Floating Ring Seals

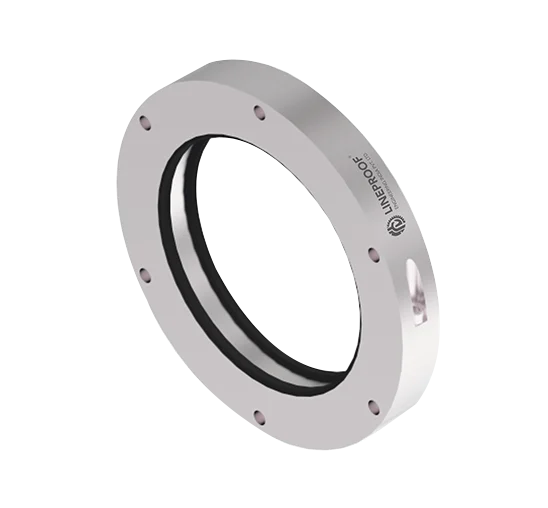

Carbon Floating Ring Seal
LPEWDK-BHS
The Carbon Floating Ring Seal is designed to prevent leakage in pumps and rotating equipment by creating a secure seal between the rotating shaft and stationary housing. Engineered for durability and consistent sealing performance, it helps protect equipment, reduce fluid loss, and support efficient operation across various industrial applications. Since 2002, Lineproof Engineering, based in Mumbai, has been providing precision-engineered mechanical shaft seals and reliable sealing components designed to meet the operational needs of modern process industries.
Face Material
Carbon Graphite.Metal Parts
SS 316, SS 304, Duplex.Operating Limits
- Shaft Diameter 40 mm to 300 mm
- Pressure 1.5 bar (max.)
- Temperature 225 °C
- Speed 40 m/s
Application
- Multi-part seal rings
- Shipbuilding drive shafts
- Sea water applications
- Short axial installation
- Dry running systems
- Self-adjusting seal rings

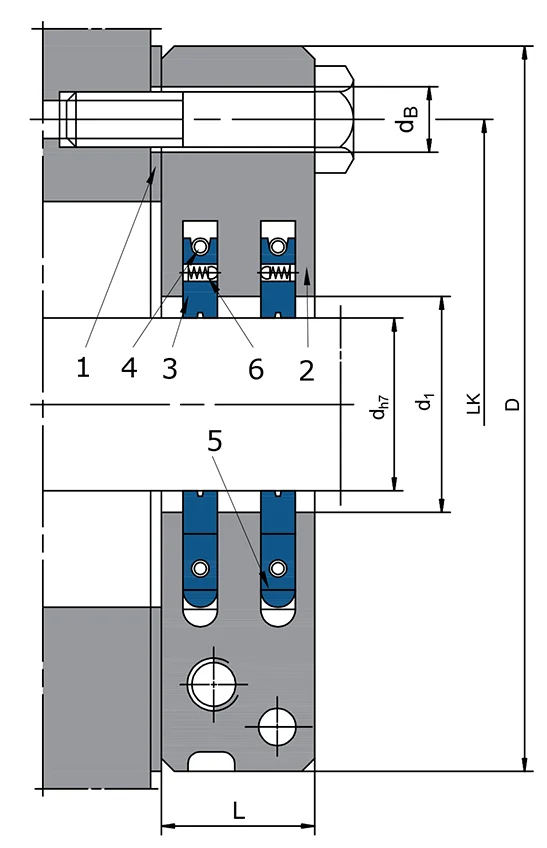

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Flat Seal | 4 | Tension Spring |
| 2 | Housing, 2 Piece | 5 | Detent |
| 3 | Seal Ring | 6 | Spring |
