Carbon Floating Ring Seals

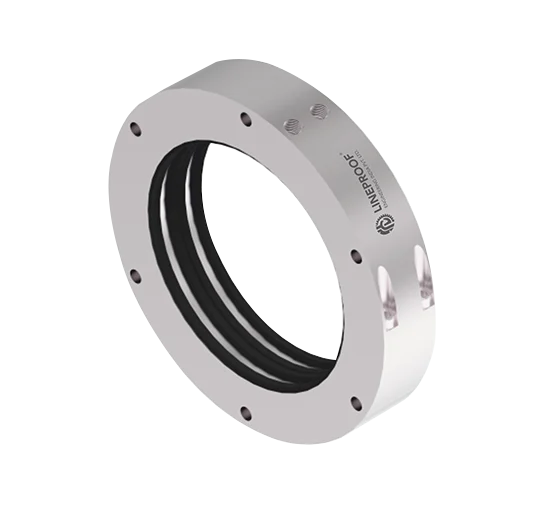

Carbon Floating Ring Seal
LPEWD200/500
The Carbon Floating Ring Seal is designed to prevent leakage in pumps and rotating equipment by creating a secure seal between the rotating shaft and stationary housing. Engineered for durability and consistent sealing performance, it helps protect equipment, reduce fluid loss, and support efficient operation across various industrial applications. Since 2002, Lineproof Engineering, based in Mumbai, has been providing precision-engineered mechanical shaft seals and reliable sealing components designed to meet the operational needs of modern process industries.
Face Material
Carbon Graphite.Metal Parts
SS 316, SS 304, Duplex.Operating Limits
- Shaft Diameter 45 mm to 300 mm
- Pressure 3 bar (max.)
- Temperature −120 °C to 500 °C
- Speed 40 m/s
Characteristics
- Multi-part seal rings, radially cut on process side
- Overlapped mortised joints on atmosphere side (gas-tight)
- Split housing design
- Lowest possible operation gap – minimal leakage
- Dry running
- Self-adjusting seal rings
- Handles radial shaft movement
- Compensates axial shaft movement
- Short axial installation length
- No shaft-mounted sealing components – no extra vibration
Application
- Chemical industry
- Waste incineration industry
- Metal production industry
- Pulp and paper industry
- Lime and cement industry
- Food processing industry

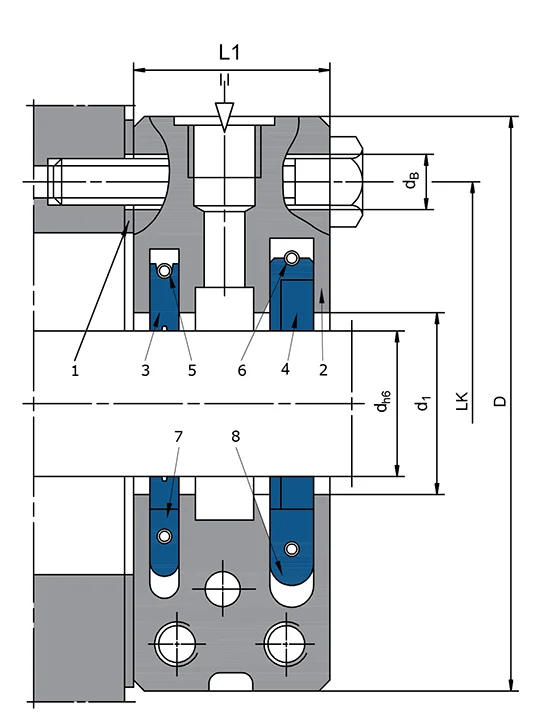

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Flat Seal | 5 | Tension Spring WD200 |
| 2 | Housing, 2-Piece | 6 | Tension Spring WD200 |
| 3 | Seal Ring WD500 | 7 | Detent WD200 |
| 4 | Seal Ring WD500 | 8 | Detent WD200 |
