Carbon Floating Ring Seals
Carbon Floating Ring Seal
LPEWD100
The Carbon Floating Ring Seal is designed to prevent leakage in pumps and rotating equipment by creating a secure seal between the rotating shaft and stationary housing. Engineered for durability and consistent sealing performance, it helps protect equipment, reduce fluid loss, and support efficient operation across various industrial applications. Since 2002, Lineproof Engineering, based in Mumbai, has been providing precision-engineered mechanical shaft seals and reliable sealing components designed to meet the operational needs of modern process industries.
Face Material
Carbon Graphite.Metal Parts
SS 316, SS 304, Duplex.Operating Limits
- Shaft Diameter 40 mm to 300 mm
- Pressure 2 bar (max.)
- Temperature −120 °C to 500 °C
- Speed 150 m/s
Characteristics
- Split housing design
- Multi-part seal rings, radially cut
- Very small operation gap – low leakage
- Dry running
- Self-adjusting seal rings
- Handles radial shaft movements
- Compensates axial shaft movements
- No sealing components on shaft → no added vibrations
- Contact-free running → zero additional power loss
Application
- Chemical industry
- Waste incineration industry
- Petrochemical industry
- Food processing industry
- Metal production industry
- Water treatment systems

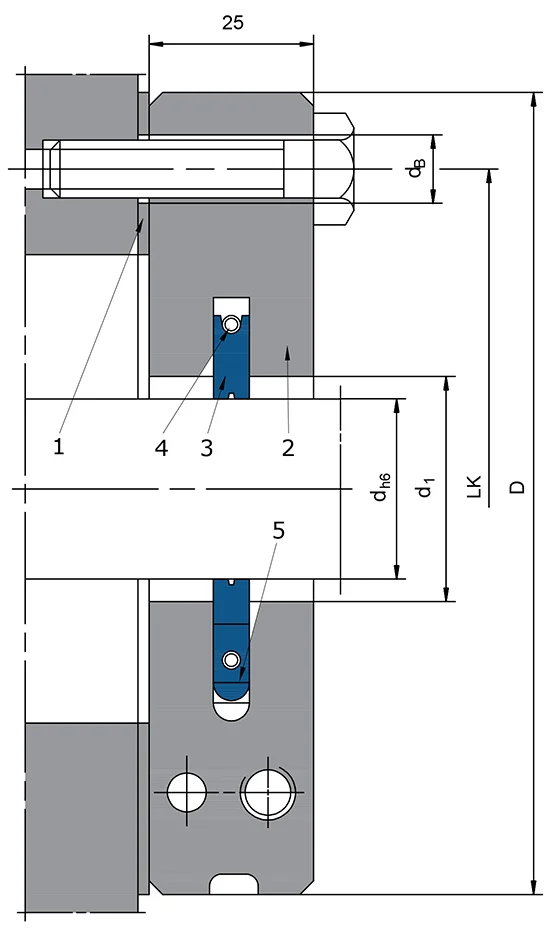

| No. | Component | No. | Component |
|---|---|---|---|
| 1 | Flat Seal | 4 | Tension |
| 2 | Housing, 2 Piece | 5 | Detent |
| 3 | Seal Ring |
